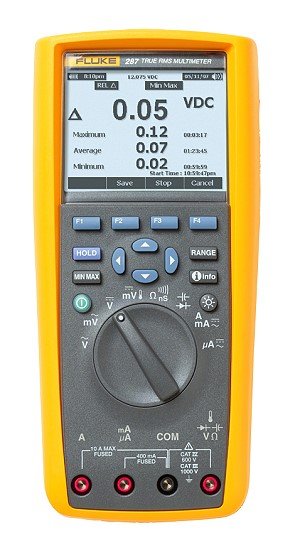

Fluke 287/Fluke 289 TRMS Industrial Logging Digital Multimeter with TrendCapture

Category: Fluke
  • Large 50,000 count, ¼ VGA display with white backlight. Multiple sets of measurement information can simultaneously be displayed at the same time.
  • Logging function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, or unattended monitoring while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings.
  • Using on-board TrendCapture, you can graphically view logged readings without a PC. (Software and interface cable optional).
  • Log multiple sessions or log data continuously for over 200 hours.
  • i-info button. On board help screens for measurement functions. Unsure about a function? Go to that function and Press the “i” button.
  • Now, name your saved measurements and also recall measurements made in the field
  • Real Time Clock – for automatic time stamping of saved readings
  • Field upgradeable and expandable meter lets you stay current as new capabilities are added
  • Multi-lingual interface
  • Min/Max/Average with Time Stamp to record signal fluctuations
  • Soft keys, scroll buttons and easy navigation control access to secondary functions.
  • 0.025% Basic DC accuracy
  • 100 kHz ac bandwidth
  • True-rms ac voltage and current for accurate measurements on complex signals or non-linear loads.
  • Measure up to 10A (20 A for 30 seconds; 10A continuous)
  • CAT III 1000 V / CAT IV 600 V safety rated
The Fluke 287 True-rms Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its’ unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before, putting more problem solving power in your hands. It is the ultimate handheld tool for demanding applications that require high-precision.

Be sure to also check out the Fluke 289 True-rm Industrial Logging Multimeter with TrendCapture designed for industrial professionals.

Specifications
Models Fluke 287 Fluke 289
Bandwidth: 100 kHz
Voltage: 1000V
(0.01 mV to 1000.0 V)
Current: 10A
(0.01A to 10A)
Resistance: 500 MΩ
(0.01Ω to 500 MΩ)
Continuity/Diode
Conductance:0.01 nS to 50.00 nS
(20 MΩ to 100 GΩ)
Capacitance: 1 pF to 100mF
(0.001 nf to 100.00 mF)
Frequency 1 MHz
(0.1 Hz to 999.99 kHz)
Min/Max/Average, Hold, Auto and Manual Range
Temperature: -200 °C to +1350 °C
(Display °C or °F)
(dBm), Selectable References or (dBV)
Peak/Crest Factor 250 µs Peak Min or Max
(From 1.0 to 4.0)
Duty Cycle: 1% to 99%
Low Pass Filter N/A
Resistance Low Ohm
(0.001 Ω to 50.000 Ω 10 mA source)
N/A
Lo Z N/A


Model Description
287 Fluke 287 True-RMS Electronic Logging Multimeter with TrendCapture
Included Accessories

  • 6 - "AA" Batteries
  • 1 - TL71 Silicone Test Leads
  • 1 - Integrated Probe Holder
  • 2 - AC72 Alligator Clips
Kits
287FVF Fluke 287/FVF FlukeView Forms Combo Kit

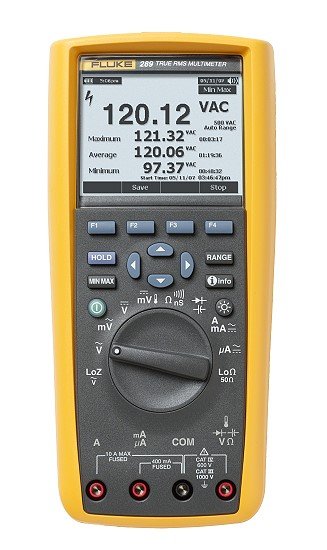

Fluke 289 and Fluke 289/FVF
TRMS Industrial Logging Digital Multimeter
with TrendCapture

  • Large 50,000 count, ¼ VGA display with white backlight. Multiple sets of measurement information can simultaneously displayed at the same time.
  • Logging function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, monitoring unattended while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings. Using on-board TrendCapture, you can graphically view logged readings without a PC. (Software and interface cable optional).
  • Log multiple sessions or log data continuously for over 200 hours. This is useful for characterizing the performance of a design or for unattended monitoring.
  • i-info button on board help screens for measurement functions. Unsure about a function? Go to that function and Press the “i” button.
  • LoZ Volts. Low impedance voltage function prevents false readings due to “ghost voltage.” It is also the recommended mode when testing for absence or presence of live power.
  • Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment.
  • 50 ohm range – useful for measuring and comparing differences in motor winding resistance, low ohm measurements, or other contact resistance. Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current.
  • Saved measurements allow you to name and recall measurements made in the field
  • Real Time Clock – for automatic time stamping of saved readings
  • Field upgradeable and expandable meter lets you stsay current as new capabilities are added
  • Multi-lingual interface
  • Min/Max/Average with Time Stamp to record signal fluctuations
  • Soft keys, scroll buttons and easy navigation control access to secondary functions. Create custom displays too.
    0.025% Basic DC accuracy
  • 100 kHz ac bandwidth
  • True-rms ac voltage and current for accurate measurements on complex signals or non-linear loads.
  • Measure up to 10A (20 A for 30 seconds; 10A continuous)
  • 100 mF capacitance range
  • Temperature function
  • Relative mode to remove test lead resistance from low ohms or capacitance measurements
  • Peak capture to record transients as fast as 250 μs
  • Premium test leads and alligator clips included
    Optical USB PC communication interface allows for easy PC download to document logged data with FVF software (not included).
  • Optional FlukeView forms enables you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents
  • Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
  • Limited lifetime warranty
  • CAT III 1000 V / CAT IV 600 V safety rated



The new Fluke 289 True-rms Industrial Logging Multimeter with TrendCapture maximizes plant productivity in the most demanding industrial settings. Solve problems on motor drives, in-plant automation, power distribution and electro-mechanical equipment. The Fluke 289 puts powerful diagnostic capabilities in your hands, and helps you take troubleshooting and predictive maintenance to the next level. It is the ultimate handheld tool for any difficult application that requires precision and true-rms accuracy combined with a large graphic display.

Specifications
Models Fluke 287 Fluke 289
Bandwidth: 100 kHz
Voltage: 1000V
(0.01 mV to 1000.0 V)
Current: 10A
(0.01A to 10A)
Resistance: 500 MΩ
(0.01Ω to 500 MΩ)
Continuity/Diode
Conductance:0.01 nS to 50.00 nS
(20 MΩ to 100 GΩ)
Capacitance: 1 pF to 100mF
(0.001 nf to 100.00 mF)
Frequency 1 MHz
(0.1 Hz to 999.99 kHz)
Min/Max/Average, Hold, Auto and Manual Range
Temperature: -200 °C to +1350 °C
(Display °C or °F)
(dBm), Selectable References or (dBV)
Peak/Crest Factor 250 µs Peak Min or Max
(From 1.0 to 4.0)
Duty Cycle: 1% to 99%
Low Pass Filter N/A
Resistance Low Ohm
(0.001 Ω to 50.000 Ω 10 mA source)
N/A
Lo Z N/A

Fluke 289/FVF Kit includes:
  • Fluke-289 True-rms Industrial Logging Multimeter with TrendCapture, LoZ, LoPass filter, and Lo Ohms
  • FVF-SC2 FlukeView Forms Software and cable
  • TL71 Silicon Test Lead Set
  • AC72 Alligator Clips
  • 80BK-A Integrated DMM Temperature Probe
  • TPAK Magnetic Meter Hanger for hands-free operation
  • C280 Soft Case for meter protection and accessory storage

Fluke 289/FVF Shown
Maximize productivity with the combined Fluke 289 and FlukeView® Forms Combo Kit. With built-in data logger and TrendCapture capability, the Fluke 289 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Using FlukeView Forms soft-ware allows you to overlay your logged data from six meters or six time periods to find cause and effect relationships or for condition monitoring. Turn your data into meaningful graphs and tables for a professional report or analyze individual readings or series of measurements. The 289/FVF combo kit gives you a practical and affordable approach to predictive maintenance.

  Fluke 289/IMSK Kit includes:
  • Fluke-289V Advanced data logging Multimeter with Trendcapture: Record, graph and review measurements in the field
  • Fluke-i400 AC 400A Current Clamp
  • TL71 Silicone Test Leads
  • AC72 Alligator Clips

Fluke 289/FVF Shown
Fluke has combined its advanced data logging Multimeter with Trendcapture with the i400 AC Current Clamp. Together they provide the ability to troubleshoot most industrial problems. Additionally, the Fluke-289/IMSK Industrial Multimeter Service Combo Kit represents a significant savings over buying the items separately


Model Description
289  Fluke 289 True-RMS Industrial Logging Multimeter with TrendCapture
Included Accessories


Fluke 289 Includes:

  • 6 -  "AA" Batteries
  • 1 - AC72 Alligator Clips
  • 1 - TL 71 Silicon Test Lead Set
  • 1 - Users Manual

Fluke 289-FVF Also includes:

  • 1 - FlukeView Forms Software and cable (289-FVF Only)
  • 1 - 80BK thermocouple  (289-FVF Only)
  • 1 - TPAK Magnetic Meter Hanger for hands-free operation  (289-FVF Only)
  • 1 - Soft case for meter protection and accessory storage  (289-FVF Only)

Fluke 289IMSK Also includes:

  • 1 - i400 AC 400A Current Clamp
Combo Kits
289FVF Fluke 289/FVF True-RMS Logging Multimeter Combo Kit with TrendCapture
289IMSK Fluke 289/IMSK Industrial Logging Meter with Fluke i400 Clamp Meter Combo Kit





Specifications
Models Fluke 287 Fluke 289
Bandwidth: 100 kHz
Voltage: 1000V
(0.01 mV to 1000.0 V)
Current: 10A
(0.01A to 10A)
Resistance: 500 MΩ
(0.01Ω to 500 MΩ)
Continuity/Diode
Conductance:0.01 nS to 50.00 nS
(20 MΩ to 100 GΩ)
Capacitance: 1 pF to 100mF
(0.001 nf to 100.00 mF)
Frequency 1 MHz
(0.1 Hz to 999.99 kHz)
Min/Max/Average, Hold, Auto and Manual Range
Temperature: -200 °C to +1350 °C
(Display °C or °F)
(dBm), Selectable References or (dBV)
Peak/Crest Factor 250 µs Peak Min or Max
(From 1.0 to 4.0)
Duty Cycle: 1% to 99%
Low Pass Filter N/A
Resistance Low Ohm
(0.001 Ω to 50.000 Ω 10 mA source)
N/A
Lo Z N/A
