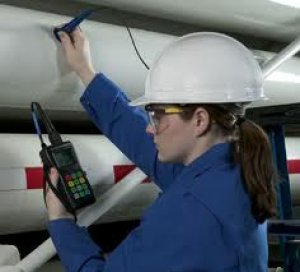

Application: Accurately measuring remaining wall thickness of metal pipes, tanks, beams, ship hulls, and other structures through paint and similar coatings.
Background: In many industrial and petrochemical maintenance situations it is necessary to measure the remaining thickness of metal that is subject to corrosion through one or more coats of paint or similar non-metallic coatings. With conventional ultrasonic thickness gages, the presence of paint or similar coatings will cause measurement errors, typically increasing the apparent metal thickness by more than twice the thickness of the paint, due to the paint's much slower sound velocity. Two solutions to this problem are available: echo-to-echo measurement and Thru-Coat measurement.
Thickness gauges(ultra-sonic)
Sub Categories
Operating principle: magnetic induction/eddy current (F/NF) Measuring range:0-1250um/0-50mil Resolution; 0.1/1 Accuracy: 3%n or 5um
NIC0007 CM-8801FNV2 NEW DIGITAL PAINT COATING THICKNESS GAUGE ON FERROUS/NON-FERROUS BASED METALS Applications: Automotive Trade This is a great tool for car dealerships, used car buyers, appraisers, insurance agents, body shops and collision centers. It will allow you to measure the paint thickness and to identify parts of the car that might have been repaired and repainted. This might indicate previous, unreported accidents which impact the value of an used car, minivan or truck. Industrial and Manufacturing Check if the protective coating, powdercoat or paint on machine parts, buildings or on incoming raw material is of the correct thickness. Features: Factory calibrated, measures precisely right out of the box Simple switch between mils or microns Large LCD flip-display, easy to read in any position Accurate readout in just 1 second Memory records the last 10 measurements Specifications: Measurement Range 0 - 40 mil 0 - 1000 µm (micron) Accuracy ± (0.1 mils + 3%) ± (2 µm + 3%) Memory 10 measurements Weight 2.6 oz / 72g Dimensions 4.2 x 1.8 x 1.0 "...
This Coating Thickness Meter is an ideal gauge for automotive and painting applications.It uses magnetic induction and eddy current principle to measure thickness of magnetic and non-magnetic surface and detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous, F) or an insulating coating on a non-magnetic conductive substrate (non-ferrous, NF).
Application Non-destructive measurement of: Paint, plastic, enamel and other insulating coatings applied on wood, plastic, glass and ceramic Polymer layers on metal Performance features Measurement of the total thickness as well as the individual layer thickness of a multi-layer system in only one operation High accuracy and reproducibility Storage and documentation of measuring values Memory capacity: Maximum 10,000 measuring values in maximum 500 batches Measuring range coating thickness measurement: Single layer 10...500µm / 0.39...19.69mils Multi layer total thickness 10...500µm / 0.39...19.69mils Measuring range wall thickness measurement: Metal: 0.1...8mm / 3.97...315mils Plastics: 0.2...3mm / 7.87...118mils Robust measuring gauges for use in the laboratory, in production and on site Limit setting with optical and acoustic warning when limits are exceeded Measuring principle Ultrasonic principle
DESCRIPTION This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals. The internal probe can work on both principles, magnetic induction and the eddy currents. The probe can automatically detect the substrates type (Magnetic or not), and calculate the coating thickness and display it fast. There are five data groups, and readings will be automatically stored to memory for general groups (Not for direct group). Each group has individual statistics, alarm limit settings and calibration. User can recall and delete specified readings easily. User does all operations via standard menu so easily. User can press the CAL button to start calibration freely. FEATURES 1. 128*128 dot matrix LCD display, standard menu operations; 2. Two measure mode: single and continuous; 3. Two group mode: direct (DIR) and general(GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group; 4. Zero point calibration and multi-point calibration(up to 4 points) for each...
The TIM001is the most popular ultrasonic thickness gauge sold in Australia. It is a low cost, hand-held microprocessor controlled thickness gauge specifically designed for measuring the thickness of metallic and non-metallic materials e.g. aluminium, titanium, plastic, plastics, ceramics, glass and any other good ultrasonic wave-conductor as long as it has parallel top and bottom surfaces.
Introduction:Name: Probe for Ultrasonic Thickness GaugeModel: PT-08 (Lemo 00 connector)Frequency: 5MHzDiameter of the contact proportion: 8mmMeasuring Range: 0.8mm-300.0mmAvaliable Contact Temperature: ﹣10ºC-60ºCApplicaiton: use for all Ultrasonic thickness gauge
1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. 2. Transducer models are available for special application, including for coarse grain material and high temperature applications. 3. Probe-Zero function, Sound-Velocity-Calibration function. 4. Two-Point Calibration function. 5.Coupling status Indicator showing the coupling status. 6. Battery information indicates the rest capacity of the battery. 7. Auto sleep and auto power off function to conserve battery life. 8. Optional software to process the memory data on the PC. 9. Optional thermal mini-printer to print the measured data via RS232 port. 10. Adjust gain function ,can easy to test the cast iron material.
