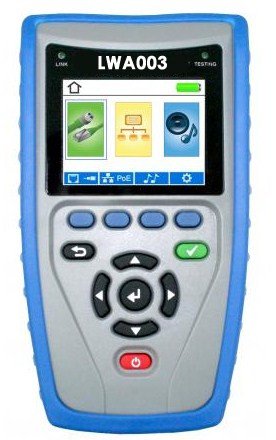

LWA003-KKINSTRUMENTS BASIC CABLING AND ADVANCED NETWORK TESTER-MADE IN USA

Category: Cable Testers



Cat 3/5e/6/6a, Coax, and Telephone Cable

The Cable Prowler™ combines the functions of a high-end cable tester and length measurement tester, with the capability to identify link status, link capability, and PoE detection. All of this is in full color and internal memory to save results.

  • Displays length measurement for each pair in feet or meters using TDR technology
  • Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
  • Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gbps
  • Link light to identify location on a hub/switch/router port
  • Tests ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, miswires, split pairs, and reverses
  • Generates selectable tones on selected pins for use with tone tracers
  • Supports up to 8 testing & ID remotes for network & telephone cables
  • Supports up to 20 network & coax ID – only mapping remotes
  • View saved cable tests

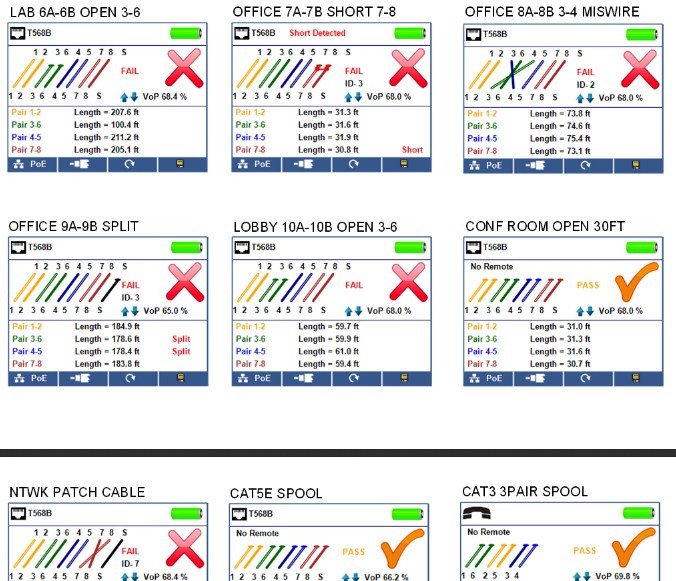

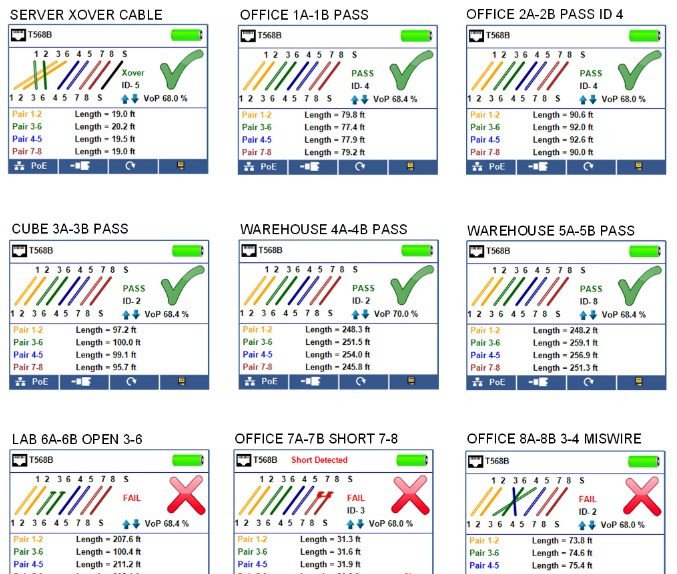

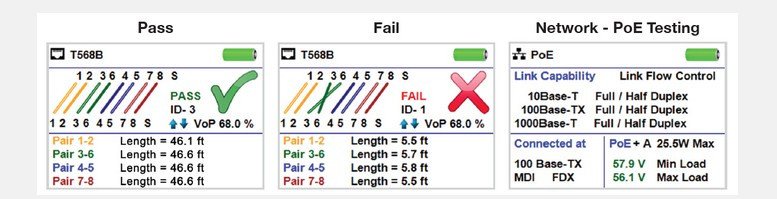

  • Full color graphical wire-mapping

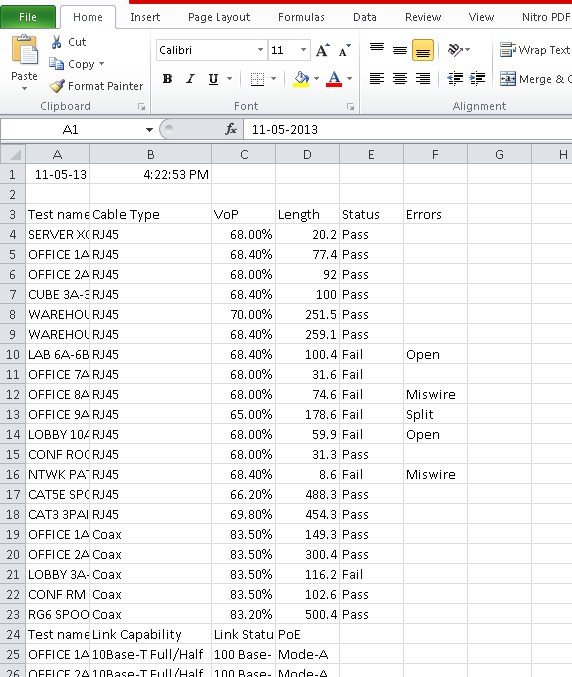

  • Ability to define cable name, save cable tests and print ALL results (cable testing & network testing)
  • Multilingual (English, French, Spanish, German, Italian)





  • High resolution full color graphical display
  • Displays wire map in color per TIA-568A/B color codes, in pin or pair order (configurable)
  • Protective silicone holster
  • Micro USB connector (to export cable reports), RJ45 connector, and Coax connector



Measurement Technology Time Domain Reflectometry (TDR)
Cable Measurements Cable Testing and ID: up to 1000 ft (305 m)
Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m)
Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft)
Supports 8 continuity and ID number remotes (RJ-45)
Supports 20 RJ-45 and 20 F-connector ID only remotes

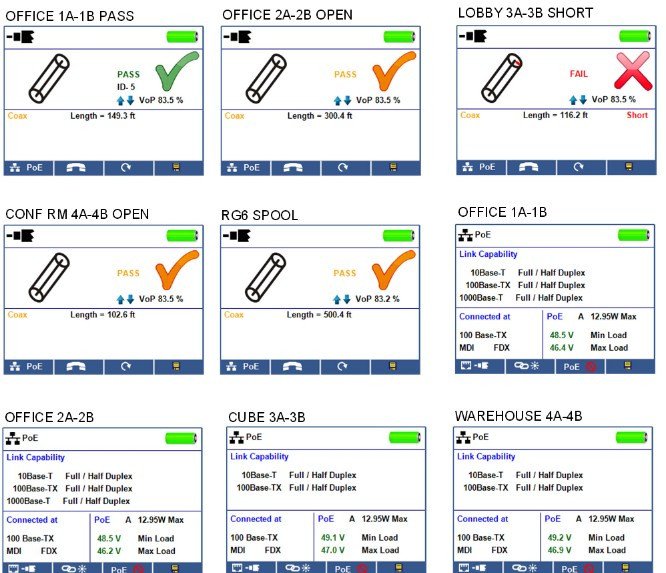

Power over Ethernet Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
Tests for classes and loads cable up to 25.5 watts
(at class 4) Identifies Mode A or B (pairs with PoE)
Active Ethernet Indicates advertised speeds of 10/100/1000base-t half or full duplex
Can Link to network at 10/100base-t
Maximum Voltage Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester.
• RJ Jack: 66 Vdc or 55 Vac
• F-connector: 50 Vdc or Vac
Save Test Results Stores up to 250 Cable or network tests with user defined names
Tone Generation Tone Frequencies: 730 Hz and 1440 Hz
Languages English, French, Spanish, German, Italian
Battery Life For 6 x AA, 9VDC, 2,200 mA-hr (typical) alkaline battery:
Operating – 20 hours typical
Standby – 1.5 years typical
(200uA max standby current)
Batteries are included
Altitude 10,000 ft (3048 m) operating
Temperature Operating: 32 to 122°F (0 to 50°C)
Storage: -22 to +140°F (-30 to 60°C)
Humidity 10 to 90% non-condensing
Enclosure High-strength PC/ABS plastic with V0 rating with boot
Withstands 4 foot drop on to concrete
Size 1.85”H x 3.6”W x 6.8”L (4.7 x 9.15 x 17.3 cm)
Weight With batteries: 1 lb 2 oz (510 g)
Safety Compliances CE
Warranty 1 Year
