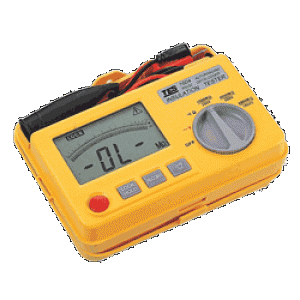

TES-1604 AUTORANGING INSULATION TESTER RS-232 Window Version, Data Logger

Category: Insulation Tester
AC Voltage
Range
Resolution
Accuracy
600V ACV
0.1Volt
1.5%rdg+3dgt (1V~600V)
Continuity
Range
Resolution
Accuracy
40 Ohm (Ish>200mA )
0.01 W
1%rdg+30dgt
Mega Ohm
Range
Resolution
Accuracy
4000M W /250V w/ autorange 4000M/400M/40M/4M
4000M W /500V w/ autorange 4000M/400M/40M/4M
4000M W /1000V w/ autorange 4000M/400M/40M/4M
4000M W /250V, 1count/1K W
4000M W /500V, 1count/1K W
4000M W /1000V, 1count/1K W

3%rdg+5Count
(under 1G W )
5%rdg+3Count
(under 4G W )

GENERAL SPECIFICATIONS
Display 80 x 50mm Big LCD penal with 50 segments analog
display Max Reading 4000
Over range Indication "OL" will be shown on the LCD penal when out of
range measurement is made.
Low Battery Indication The will be shown when the battery need to be changed
Sampling Rate 2.5 times/sec Digital Display
10 times/sec Bar Graph
Power Source Eight 1.5Volt AA size Battery
Operating Temperature and Humidity 0 ℃ to 40 ℃ (32 ℉ to 104 ℉ ), below 80% RH
Storage Temperature -10 ℃ to 60 ℃ ( 14 ℉ to 140 ℉ )
Dimension 200(L)x140(W)x95(H)mm
Weight Approx. 900g (with battery)
Accessories Test Lead, Battery, Instruction Manual, RS-232 interface,
Software for Windows .
