SEW-Taiwan

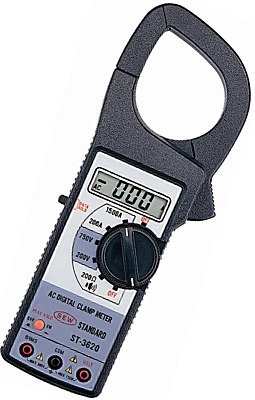

Sew ST-3620

Category: AC Clamp Meters
FEATURES
● 3½ digit liquid crystal display with maximum reading of 1999.
● Over range indication : "1" is displayed on highest digit.
● Low battery indication: "B" sign appears on the display.
● Response time: approx. 1 second.
● Data hold: for all ranges

  SPECIFICATIONS



AC A 200 / 1500A
±(2.0%rdg+4dgt)
(40Hz-1kHz)
AC V 200 / 750V
±(1.5%rdg+2dgt)
(40Hz-1kHz)
  200
±(1.5%rdg+2dgt)
Buzzer Resistance is less then 30
Peak hold ˇ
Conductor size 55mm Max.
Operating
temperature
0ºC ~ 40ºC
Humidity 85%
Current
consumption
Approx. 10mA
Dimensions  245(L) × 70(W) × 41.7(D)mm
Weight
(battery Included)
Approx. 480g
Power source 9V(6F22) × 1
