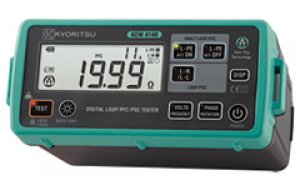

• | Anti-Trip Technology for complete trip free Loop testing on all RCDs rated 30mA and above. |
• | Dual Display allows simultaneous measurements like Loop & PFC/PSC. |
• | Two wire connection for Loop L-L, L-N and PSC testing is possible. |
• | Phase rotation, Voltage and Frequency measurements. |
• |
Lock-down test button for 'hands free' testing with auto-start operation. |
• | Display and front panel keyboards with Backlight to be visible in dark places. |
• | Water and Dust proof (IP54) |
Loop Impedance | |||||||||||||||||||||||||||
Function | L-PE ATT OFF | L-PE ATT ON | L-N / L-L | ||||||||||||||||||||||||
Rated Voltage | 230V (50/60Hz) | L-N: 230V (50/60Hz) L-L: 400V (50/60Hz) |
|||||||||||||||||||||||||
Operating Voltage | 100~280V (45~65Hz) | 100~500V (45~65Hz) | |||||||||||||||||||||||||
Range (Auto-Ranging) | 20/200/2000Ω | 20/200/2000Ω (L-N<20Ω) |
20Ω | ||||||||||||||||||||||||
Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V | 20Ω: 6A/40ms 200Ω: 2A/20ms 2000Ω: 15mA/500ms |
L-N: 6A/60ms N-PE: 10mA/approx.5s |
20Ω: 6A/20ms | ||||||||||||||||||||||||
Accuracy | ±3%rdg±4dgt (*1) | ±3%rdg±6dgt (*1) | L-N: ±3%rdg±4dgt L-L: ±3%rdg±8dgt |
||||||||||||||||||||||||
PFC (L-PE) / PSC (L-N / L-L) (*2) | |||||||||||||||||||||||||||
Function | PFC | PFC (ATT) | PSC | ||||||||||||||||||||||||
Rated Voltage | 230V (50/60Hz) | L-N: 230V (50/60Hz) L-L: 400V (50/60Hz) |
|||||||||||||||||||||||||
Operating Voltage | 100~280V (45~65Hz) | 100~500V (45~65Hz) | |||||||||||||||||||||||||
Range (Auto-Ranging) | 2000A/20kA | 2000A/20kA (L-N<20Ω) | 2000A/20kA | ||||||||||||||||||||||||
Nominal Test Current at 0Ω External Loop: Magnitude/Duration at 230V | 20Ω: 6A/40ms 200Ω: 2A/20ms 2000Ω: 15mA/500ms |
L-N: 6A/60ms N-PE: 10mA/approx.5s |
20Ω: 6A/20ms | ||||||||||||||||||||||||
Phase Rotation | |||||||||||||||||||||||||||
Operating Voltage | 50~500V, 45~65Hz | ||||||||||||||||||||||||||
Remarks | Correct phase sequence: displayed "1.2.3" and mark Reversed phase sequence: displayed "3.2.1" and mark |
||||||||||||||||||||||||||
Volts | |||||||||||||||||||||||||||
Function | Volts | Frequency | |||||||||||||||||||||||||
Measuring range | 0~500V | 45~65Hz | |||||||||||||||||||||||||
Accuracy | ±2%rdg±4dgt | ±0.5%rdg±2dgt | |||||||||||||||||||||||||
General | |||||||||||||||||||||||||||
Applicable standards | IEC 61010-1 CAT.III 300V (500V L to L), IEC 61010-031, IEC 61557-1, 3, 7, 10, IEC 60529 (IP54), IEC 61326 (EMC) |
||||||||||||||||||||||||||
Power source | 1.5V AA batteries × 6 *Use of alkaline batteries (LR6) is recommended. | ||||||||||||||||||||||||||
Dimensions | 84 (L) × 184 (W) × 133 (D) mm | ||||||||||||||||||||||||||
Weight | 860g (including batteries) | ||||||||||||||||||||||||||
Accessories included | Main cord (*3) Distribution board test lead (*4) 9155 (Shoulder strap) 9156 (Soft case) LR6 (Battery) × 6, Instruction manual, Calibration certificate |
