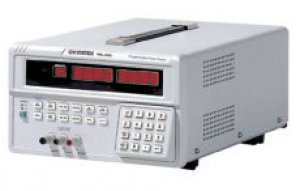

GW INSTEK PEL-300

Features:

Operating Current 6mA ~ 60A
Operating Power 1 ~ 300W
Operating Voltage DC 3 ~ 60V
Easy Operation with UP/DOWN Key
High Resolution : 20mV, 0.2mA, 0.33mΩ
Over Voltage, Over Current, Over Power Protection
100 Sets Memory
C.C, C.V & C.R Operation Mode
Transient Generator Frequency Range : 1Hz ~ 1kHz
Duty Range : 10% ~ 90%
Self-Test and Software Calibration
Meets UL, CSA, IEC Safety Regulations

Description:

The PEL-300 is a single channel, 300W, programmable DC electronic load. OVP, OCP, and OPP protect the PEL-300 from unexpected load conditions. The PEL-300 DC electronic load complies with major safety standards such as UL, CSA, and IEC to ensure safety. A high resolution of 20mV, 0.2mA and 0.33m (CV, CC, CR mode) ensures accurate load measurements. Sequence programming is simplified with save and recall options as well as extensive timer settings. It has self-test and software calibration features to reduce maintenance efforts. The PEL-300 is suitable for laboratory and production line applications,where safety and reliability are the top priorities.

Specification:

RATING

Operating Volatge DC 3 ~ 60V
Operating Current 6mA ~ 60A
Operating Power 1 ~ 300W
MInimum Operation 3V

CV MODE

Operating Range DC 3 ~ 60V
Setting Accuracy ±(0.1% + 40mV)
Setting Resolution 20mV

CC MODE

Operating Range 6mA ~ 60A
Setting Accuracy ±(0.5% + 100mA) for 6.02A ~ 60A
±(0.1% + 10mA) for 0.602A ~ 6A
±(0.1% + 1mA) for 6mA ~ 0.6A
Setting Resolution 20mA for 6.02A ~ 60A
2mA for 0.602A ~ 6A
0.2mA for 6mA ~ 0.6A

CR MODE

Operating Range 50mΩ ~ 1kΩ
Setting Accuracy

±(5% + 1Ω) for 100.33Ω ~ 1kΩ
±(5% + 100mΩ) for 10.033Ω ~ 100Ω
±(5% + 10mΩ ) for 1.0033Ω ~ 10Ω
±(5% + 1mΩ ) for 50mΩ ~ 1Ω

Setting Resolution 330mΩ for 100.33Ω ~ 1kΩ
33mΩ for 10.033Ω ~ 100Ω
3.3mΩ for 1.0033Ω ~ 10Ω
0.33mΩ for 50mΩ ~ 1Ω

DYNAMIC OPERATION CC MODE ONLY

Frequency Range 1Hz ~1kHz
Resolution

5Hz for 100Hz ~1kHz
0.5Hz for 10Hz ~100Hz
0.05Hz for 1Hz ~10Hz

Duty Range 10% ~ 90%
Resolution 1%

VOLTAGE READBACK

Accuracy ±(0.1% + 60mV)
Resolution 20mV

CURRENT READBACK

Accuracy ±(0.5% + 100mA) for 6.02A ~ 60A
±(0.1% + 10mA) for 0.602A ~ 6A
±(0.1% + 1mA) for 6mA ~ 0.6A
Resolution 20mA for 6.02A ~ 60A
2mA for 0.602A ~ 6A
0.2mA for 6mA ~ 0.6A

MEMORY

  100 sets

TIMER

Range 1 second ~ 999 minutes 59 seconds
Resolution 1 second
Function for load on
POWER SOURCE
  AC100V/120V/220V/240V±10%, 50/60Hz

ACCESSORIES

  User manual x 1
Power cord x 1
DIMENSIONS & WEIGHT
  255(W) x 145(H) x 346(D)mm
Approx. 9kg

Accessories:

User Manual X 1, Power Cord X 1

Ordering Information:


300W DC Electronic Load
