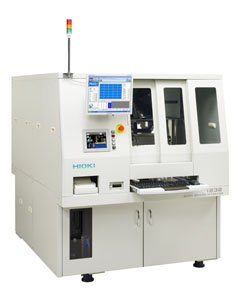

Hioki Bare Board HiTester 1232-11

Category: Bare Board Testing

High-Precision Batch Fixture-Type Testing System that Support Boards with Embedded Passive and Active Devices

The 1231-11 is a bare board tester that utilizes the full range of Hioki’s in-circuit testing technologies to deliver LSI reliability testing, complex component separation testing, high continuity and insulation testing, and more.

• Support for build-up boards that require resistance guarantees
The combination of theoretical resistance values generated by SIM-LINE with high-precision, 4-terminal resistance measurement assures pattern reliability.
• Support for boards with embedded passive and active devices
HIOKI delivers testing of embedded passive and active devices that is one step ahead of the competition thanks to measurement expertise developed in connection with its in-circuit testers.
• Support for CSP/CPU quarter-panel size
Large, 340 × 330 mm working area
• Support for flexible boards
The 1232-11 supports thin boards with a thickness of 0.05 mm. Its tension clamps can secure even flexible boards in a stable manner.

■ Specifications overview

Maximum number of pins 4,096 each on top and bottom (includes standard 4,096-pin one-touch connector)
Number of test steps Max. 10,000 steps
Cycle time Measurement at 0.330 sec./piece (210 μsec. continuity × 1,024, 115 msec. isolation)
(*2,048 endpoints and 1,024 nets per piece)
Minimum pad diameter φ 10 μm
Clampable/transportable board dimensions Thickness: 0.05 to 2.5 mm (Not all thicknesses supported; contact HIOKI for more information about testing of thin boards.)
Outer dimensions: 50 mm (1.97 in) W × 50 mm (1.97 in) D to 330 mm (12.99 in) W × 330 mm (12.99 in) D (including clamp area)
Inter-probe pitch Min. 80 μm
Power supply 200 V AC ±10% (3-phase), 50/60 Hz, 5 kVA
Dimensions and mass 1,437 mm (56.57 in) W × 1,685 mm (66.34 in) H × 1,905 mm (75.00 in) D, 2,000 kg (70,546.7 oz)
