Current Measurement

Specialist test equipment is available for the measurement of electrical current flow in overhead line systems and large diameter conductors and fuses.

These dedicated high voltage test instruments are designed to meet current measurement needs up to 2000 amps and find widespread use by power utilities throughout the world and are widely acknowledged as contributing to productive and safe working practices.

  • Filter

100mm jaw opening Continuous readout or store options 2000A Range The lightweight Type L Plus large jaw current clamp meter is designed for the measurement of current in large diameter conductors and fuses.  Its 100mm jaw opening allows for use in most difficult situations, and is suitable for porcelain fuse carriers in distribution systems. High levels of insulation are incorporated for maximum safety and protection, together with the facility to provide complete linearity of measurement between 0 and 2000A featuring 3.5” LCD, and controlled using two main operating buttons. A TRACK facility provides a continuous readout and STORE facility monitors peak levels - ideally suited for monitoring maximum demand in electrical distribution networks.

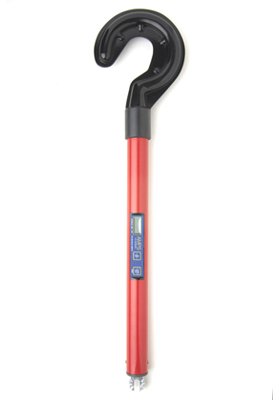

Ammeter for overhead powerlines For use on overhead line systems up to 40 kV Simple to use membrane switches LCD display for readout and battery indicator The Halo has been designed for measuring current flow on overhead line systems up to 40 kV (line to earth). The sensing unit is encased in a moulded plastic housing and is fully screened against the effects of electrostatic fields.The RMS reading digital display is mounted in the fibre glass tubing body of the instrument and has a measurement range of 0A - 2000A. Using operator rods, the Halo is hooked over the conductor, and after 5 seconds the reading is stored and the instrument can be returned to ground level for the result to be recorded. The jaws are large enough to accommodate up to 50mm conductors. Measuring range 0 – 2000 Amps Accuracy 5% +/- 3 digits System voltage 40kV Display 3” digit digital display Operating temperature -10°C -+ 55°C Frequency 50Hz or 60Hz Battery 9v PP3 – 6R61 Weight 1.2kg Jaw size For conductors up to 50mm
