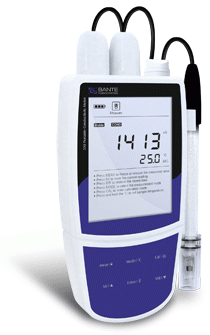

Bante531 portable conductivity meter used for measuring the
electrical conductivity and salinity of liquids.
Features:
Up to 5-point push-button calibration allows user to uses customized
calibration solutions.
Adjustable cell constants, temperature coefficients, normalization
temperature etc.
In salinity measurement modes, selectable practical salinity (PSU) or
seawater measurement standard (ppt).
Automatic Temperature Compensation (ATC) ensures highly accurate
measurements over the entire range.
Manual temperature calibration provides accurate temperature value.
Selectable either temperature units between degrees Celsius (°C)
and degrees Fahrenheit (°F).
Selectable linear or pure water compensation modes.
Calibration due reminder prompts you to calibrate the meter regularly.
Automatic endpoint function freezes the stable measured values for
easy reading and recording data.
Help message as a operational guide to helps you understand how
to use meter.
Setup menu lets user customize calibration points, stability conditions,
temperature units, date and time to meet measurement requirements.
Reset function can resumes all settings to factory default values.
Expanded memory stores and recalls up to 500 readings.
Built-in real-time clock stamps stored data to meets GLP standards.
Stored data can be transferred into computer via USB communication
interface.
Specifications: | ||||||
Model | Bante531 | |||||
Conductivity Range | 0~20mS/cm (Max.200mS/cm) | |||||
Conductivity Accuracy | ±0.5% Full Scale | |||||
Calibration Points | Up to 5 points | |||||
Calibration Solutions | 10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm | |||||
Salinity Range | 0~10ppt (Max. 80ppt) | |||||
Salinity Accuracy | ±1% Full Scale | |||||
Salinity Measurement Modes | Practical Salinity (PSU) or Seawater Measurement Standard (ppt) | |||||
Temperature Range | 0~105°C, 32~221°F | |||||
Temperature Accuracy | ±0.5°C, ±0.9°F | |||||
Temperature Calibration | Manual | |||||
Temperature Compensation | 0~100°C, 32~212°F, Automatic or Manual | |||||
Temperature Coefficient | 0.0~10.0% per °C | |||||
Compensation Modes | Linear or Pure Water | |||||
Cell Constant | K=0.1, 1, 10, Selectable | |||||
Normalization Temperature | 20°C or 25°C | |||||
Auto-Off | Manual or Automatic (10, 20, 30 minutes after last key pressed, Selectable) | |||||
Hold Function | Manual or Automatic | |||||
Stability Conditions | Low or High, Selectable | |||||
Calibration due reminder | 0 to 30 days | |||||
Reset Function | Yes | |||||
Sensor Type | Platinum (Order Code: CON-0.1, CON-1 or CON-10) | |||||
Connector | 6-pin | |||||
Memory | 500 data sets with Date/Time stamping | |||||
Output | USB Communication Interface | |||||
Power Requirements | 3×1.5V "AA" Batteries | |||||
Battery Life | Approximately 150 hours | |||||
Dimensions | 170(L)×85(W)×30(H)mm | |||||
Weight | 300 grams | |||||
Order Code and Accessories: | ||||||
Order Code | Accessories | |||||
Bante531-S |
CON-1 Conductivity Electrode Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm) TP-10K Temperature probe Carrying Case and "AA" Batteries |
|||||
Bante531-DH |
CON-1 and CON-10 Conductivity Electrode Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm) TP-10K Temperature probe Carrying Case and "AA" Batteries |
|||||
Bante531-DL |
CON-1 and CON-0.1 Conductivity Electrode Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm) TP-10K Temperature probe Carrying Case and "AA" Batteries |
